Ultrasonic bin fill-level sensor

Get control of waste fill-levels in your bins, dumpsters and containers

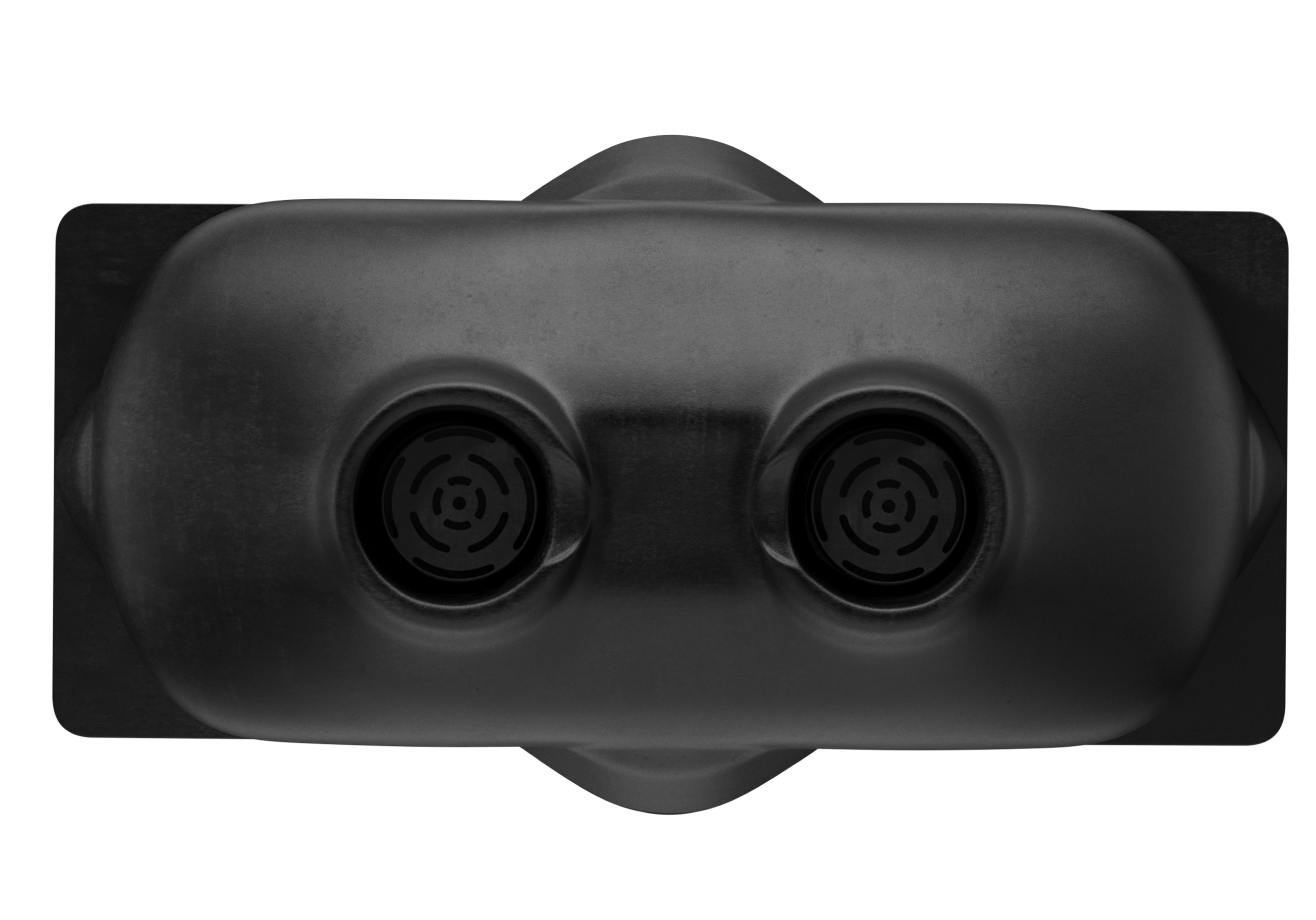

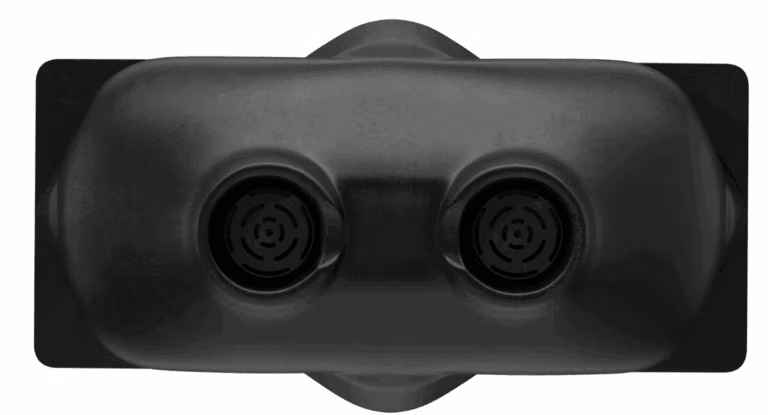

Close up view of a black ultrasonic bin sensor with dual circular components.

Versatility

Monitoring any type of waste in any type of bins

Build quality and resistance

Robust, water and shock-resistant, fully functional within a wide temperature range

Network connectivity

Sensors can be connected to a variety of IoT networks and GPRS

11.100
sensors

Largest global smart waste installation in Madrid

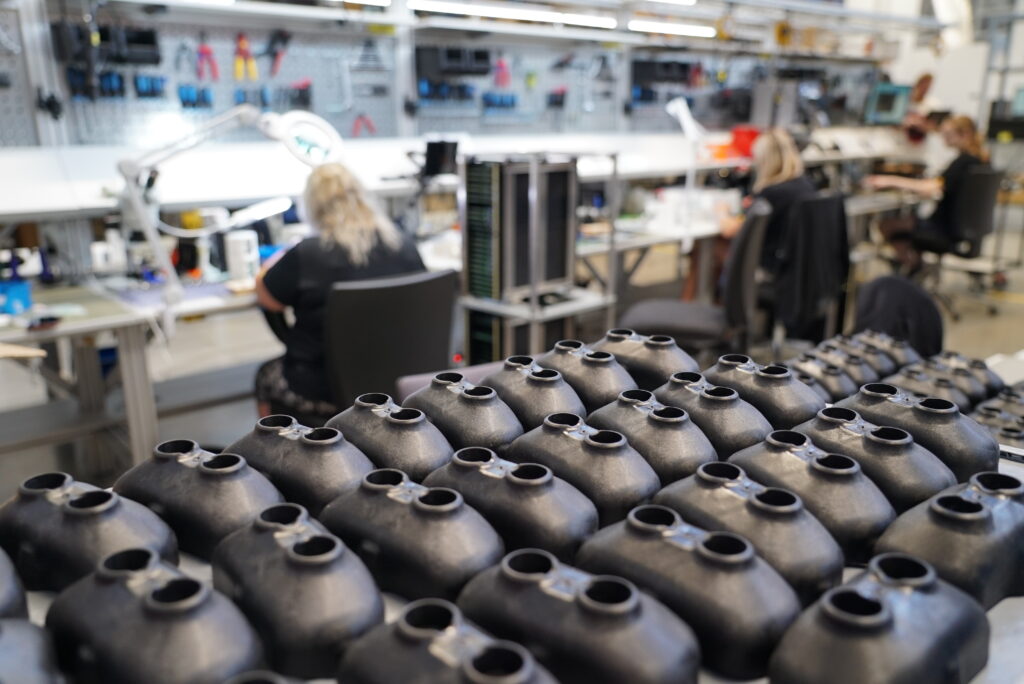

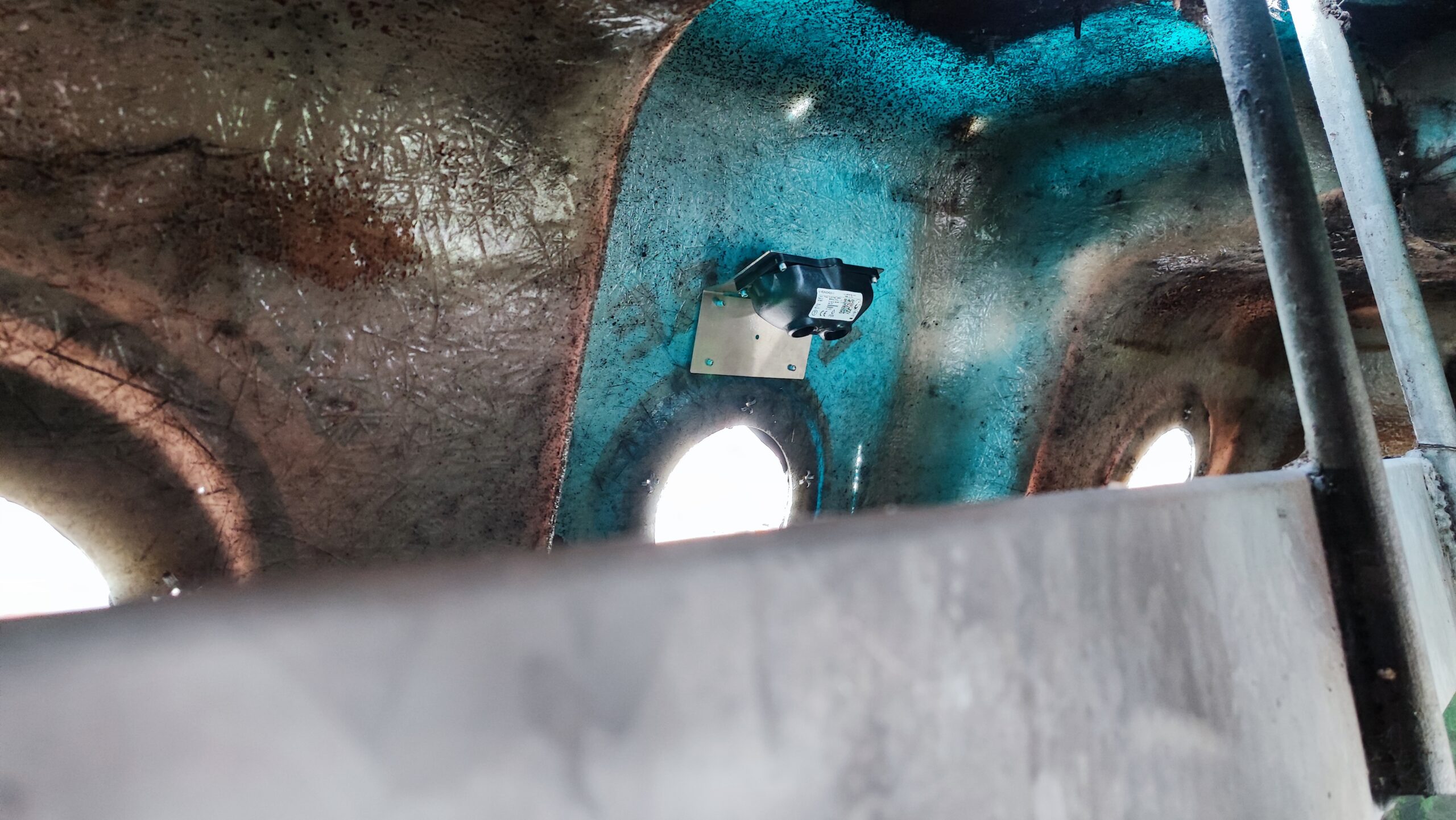

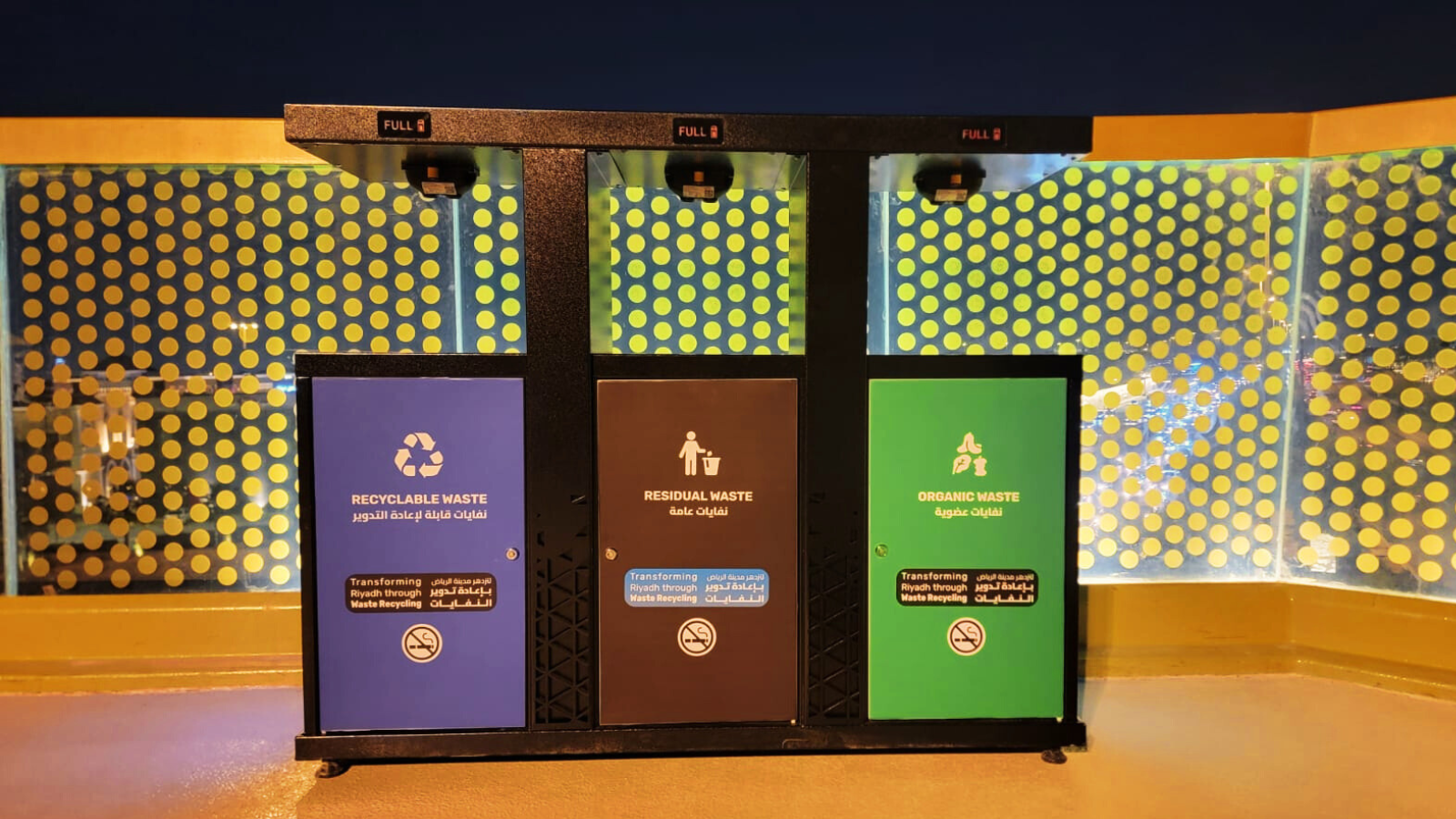

 Interior of a container with a sensor mounted on the wall, used for monitoring waste levels or conditions inside the container.A waste sorting station with three bins that have indicators showing "FULL".Black plastic components being assembled in a workshop with workers in the background.

Problems we solve

  • Inefficient collection of empty or half-empty bins
  • Delayed collection and overflowing bins
  • Absence of real-time data, making waste collection scheduling a challenge
  • Poor quality of service and no chance of verification or supervision
  • Increasing operational costs
  • Outdated route planning
  • Difficulty in compiling accurate reports and meeting sustainability goals
  • Critical situations with bin infrastructure like fire, vandalism, theft and robberies
Overflowing green trash bins with scattered garbage on the ground.

Available ultrasonic sensor types

Single Sensor 5.0

The latest generation of Sensoneo smart waste ultrasonic sensors offers advanced features such as FOTA and GPS.

  • Robustness and resistance
  • Data transmission via a variety of networks
  • Easy-to-use and deploy
  • Large-scale deployment capability
  • Versatility of use
  • Sophisticated quality assurance
  • Designed and developed in-house
  • Manufactured in EU
  • Citizen engaging
MeasurementSingle ultrasonic beam
Measuring range standard (cm)3 – 255
Measuring range long-range (cm)3 – 1200
ConnectivityLoRaWAN / Sigfox / NB-IoT / CAT-M1
Measurement timesFrom once a day to every 2 minutes
ConfigurationMobile App via BLE or Downlink
FOTA (Firmware Over The Air)Yes
Emptying recognitionAccelerometer. Advanced tilt recognition algorithm.
GPS functionalityYes, powered by GNSS
Supporting connection to external GPSYes
Supporting connection to external antenna for NB-IoT and CAT-M1 networkYes
RORO (roll-on/roll-off)Yes
Replaceable batteriesYes
Temperature measurementMicrocontroller termostate
Dimensions in mm (h/w/d)50 / 120 / 54
Weight (incl. batteries)215 g
CasingIP69
Protection against external mechanical impactsIK10 rating
MaterialRecyclable, glass fiber reinforced polyamide
Mounting optionsScrews / Clench / Rails

We do not limit customers to a certain network. Our customers have sensors connected to several networks – it all depends on the connectivity available in the given location. Single Sensor 5.0 from Sensoneo can be connected to either NB-IoT or the Cat-M1 network. Data is sent in real time to our Smart waste Management System, one of the best waste management software on the market.

Payload and network communication is encrypted on two levels preventing misuse of Sensoneo Sensors for DDOS attacks.

Sensoneo Smart Sensors can provide a service verification for your pickup. The sensor has a built-in accelerometer that recognizes movement, both horizontal and vertical. Upon careful configuration for your bin design, vehicle pickup system and emptying movement, Smart Sensor can detect a pickup and send the notification to the dashboard.

Installing Sensoneo Smart Sensors is quick and straightforward, with no technical expertise required. Many customers choose to handle the configuration themselves, thanks to the solution’s intuitive and user-friendly design. To guide you through setup and installation, we provide clear instructions, detailed user guides, and step-by-step video manuals. Be sure to review all materials carefully to ensure a smooth and successful deployment.

Version 5.0 since 2022

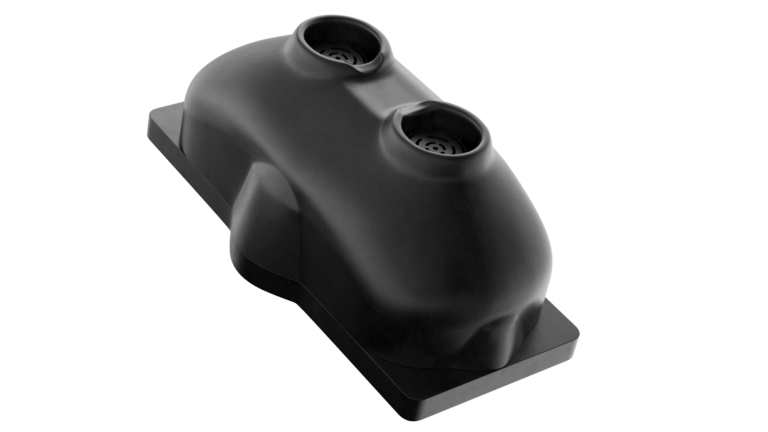

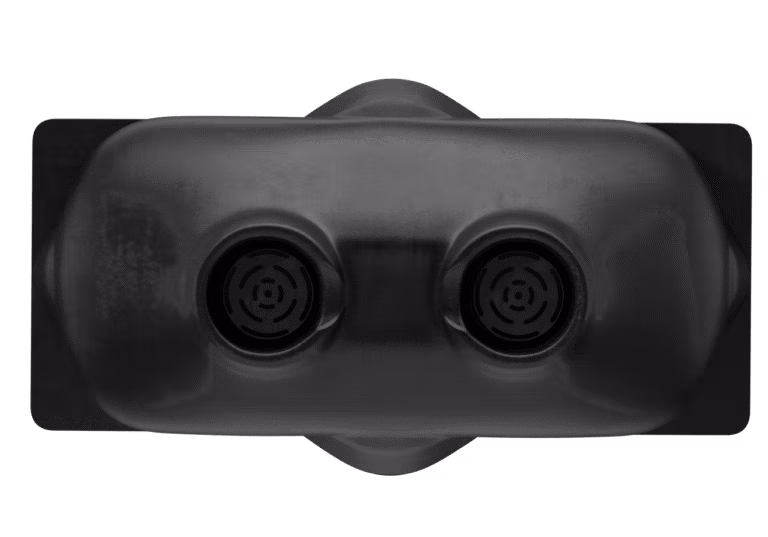

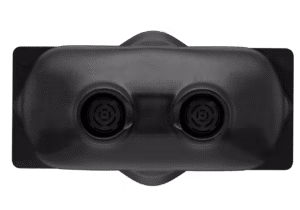

A top-down view of a black waste management sensor.

Single Sensor 3.0

The reliable and affordable version of our ultrasonic sensor, proving its competitive advantage in large-scale projects around the world.

  • Robustness and resistance
  • Data transmission via a variety of networks
  • Easy-to-use and deploy
  • Large-scale deployment capability
  • Versatility of use
  • Sophisticated quality assurance
  • Designed and developed in-house
  • Manufactured in EU
  • Citizen engaging
MeasurementSingle ultrasonic beam
Measuring range (cm)3 – 255
ConnectivityLoRaWAN / Sigfox / NB-IoT
Measurement timesUp to 24 measurements per day, once per hour
ConfigurationMobile App via BLE or Downlink
Emptying recognitionAccelerometer. Advanced tilt recognition algorithm.
Replaceable batteriesYes
Temperature measurementMicrocontroller termostate
Dimensions in mm (h/w/d)50 / 120 / 54
Weight (incl. batteries)215 g
CasingIP69
Protection against external mechanical impactsIK10 rating
MaterialRecyclable, glass fiber reinforced polyamide
Mounting optionsScrews / Clench / Rails

We do not limit customers to a certain network. Our customers have sensors connected to several networks – it all depends on the connectivity available in the given location. Single Sensor 3.0 from Sensoneo can be connected to a variety of IoT networks – Sigfox, LoRaWAN, and NB-IoT. Data is sent in real time to our Smart waste Management System, one of the best waste management software on the market.

Payload and network communication is encrypted on two levels preventing misuse of Sensoneo Sensors for DDOS attacks.

Sensoneo Smart Sensors can provide a service verification for your pickup. The sensor has a built-in accelerometer that recognizes movement, both horizontal and vertical. Upon careful configuration for your bin design, vehicle pickup system and emptying movement, Smart Sensor can detect a pickup and send the notification to the dashboard.

Installing Sensoneo Smart Sensors is quick and straightforward, with no technical expertise required. Many customers choose to handle the configuration themselves, thanks to the solution’s intuitive and user-friendly design. To guide you through setup and installation, we provide clear instructions, detailed user guides, and step-by-step video manuals. Be sure to review all materials carefully to ensure a smooth and successful deployment.

Version 3.0 since 2019

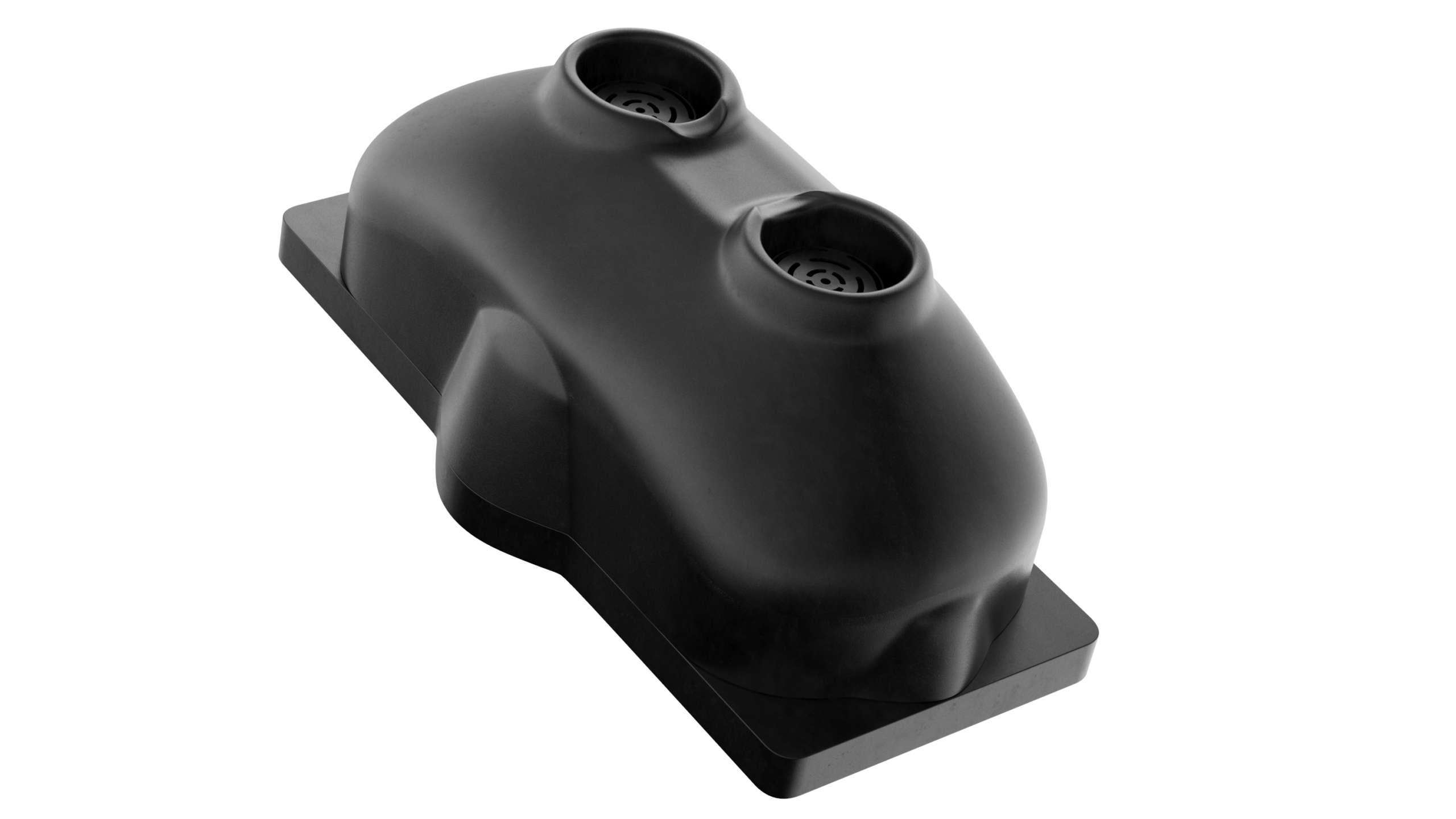

A smooth black molded plastic part with two circular openings on its top surface.

Quatro Sensor

Our longest-lasting sensor is the safest option in areas without IoT network coverage. Thanks to its robust casing, it can hold two batteries, ensuring a longer operating time.

  • Robustness and resistance
  • Data transmission via a variety of networks
  • Easy-to-use and deploy
  • Large-scale deployment capability
  • Versatility of use
  • Sophisticated quality assurance
  • Designed and developed in-house
  • Manufactured in EU
  • Citizen engaging
MeasurementFour ultrasonic beams
Measuring range (cm)15 – 400
ConnectivityGPRS / NB-IoT / LoRaWAN / Sigfox
Measurement timesUp to 24 measurements per day, once per hour
ConfigurationMobile App via BLE or Downlink
Overturn notificationAccelerometer
GPS functionalityYes, powered by GNSS
Replaceable batteriesYes
Temperature measurementMicrocontroller termostate
Dimensions in mm (h/w/d)63 / 200 / 87
Weight (incl. batteries)760 g
CasingIP67
MaterialRecyclable, glass fiber reinforced polyamide
Mounting optionsScrews / Clench / Rails

We do not limit customers to a certain network. Our customers have sensors connected to several networks – it all depends on the connectivity available in the given location. Quatro Sensor from Sensoneo can be connected to a variety of IoT networks – Sigfox, LoRaWAN, and NB-IoT. If IoT network is not available, GPRS is an option. Data is sent in real time to our Smart waste Management System, one of the best waste management software on the market.

Payload and network communication is encrypted on two levels preventing misuse of Sensoneo Sensors for DDOS attacks.

Sensoneo Smart Sensors can provide a service verification for your pickup. The sensor has a built-in accelerometer that recognizes movement, both horizontal and vertical. Upon careful configuration for your bin design, vehicle pickup system and emptying movement, Smart Sensor can detect a pickup and send the notification to the dashboard.

Installing Sensoneo Smart Sensors is quick and straightforward, with no technical expertise required. Many customers choose to handle the configuration themselves, thanks to the solution’s intuitive and user-friendly design. To guide you through setup and installation, we provide clear instructions, detailed user guides, and step-by-step video manuals. Be sure to review all materials carefully to ensure a smooth and successful deployment.

Quatro Version since 2018

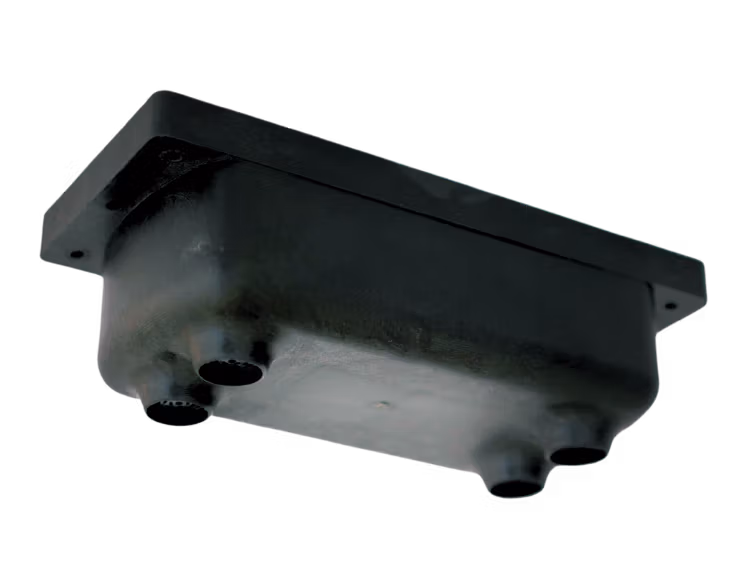

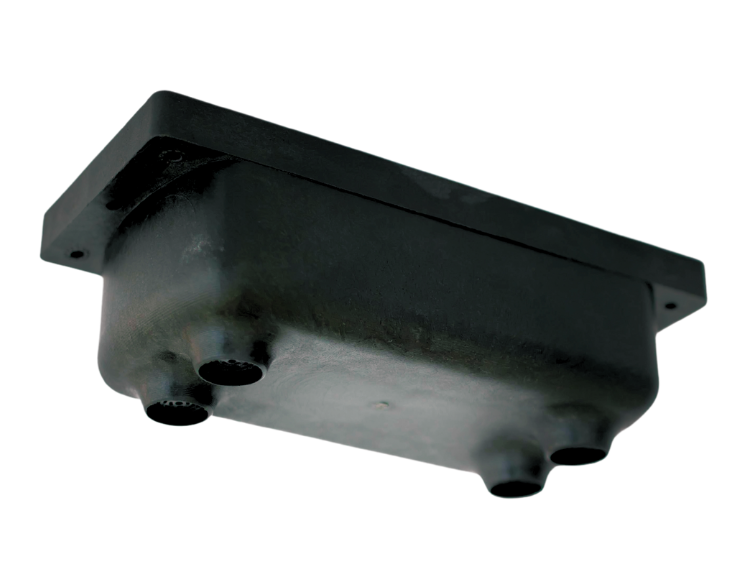

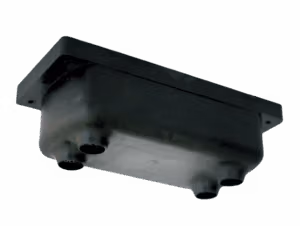

A dark rectangular sensor component with multiple nozzles on the underside.

How it works

Step 1

Select the right sensor and place an order

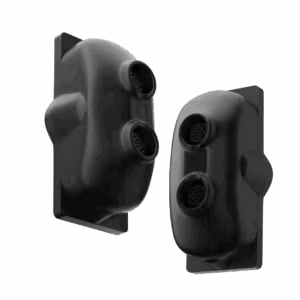

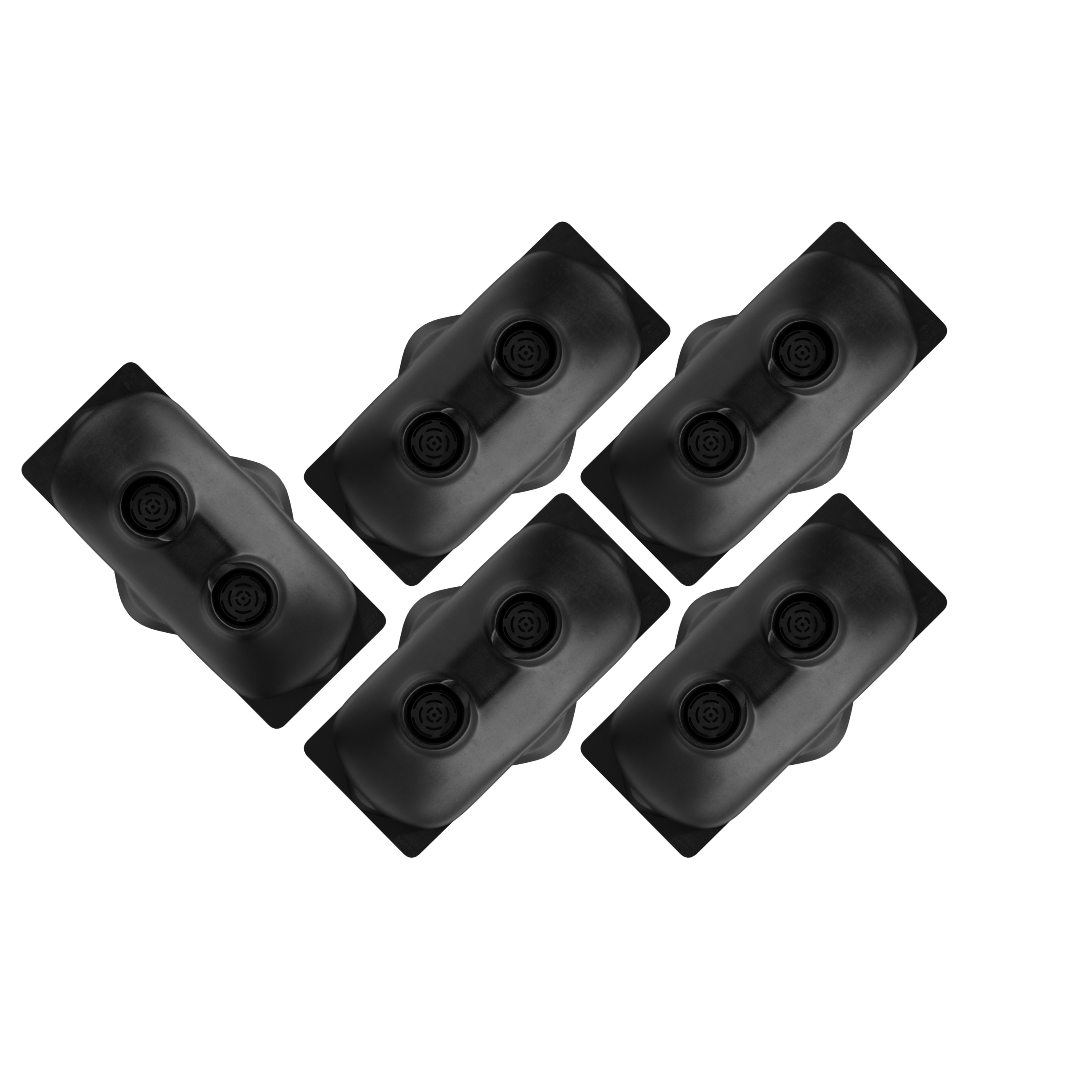

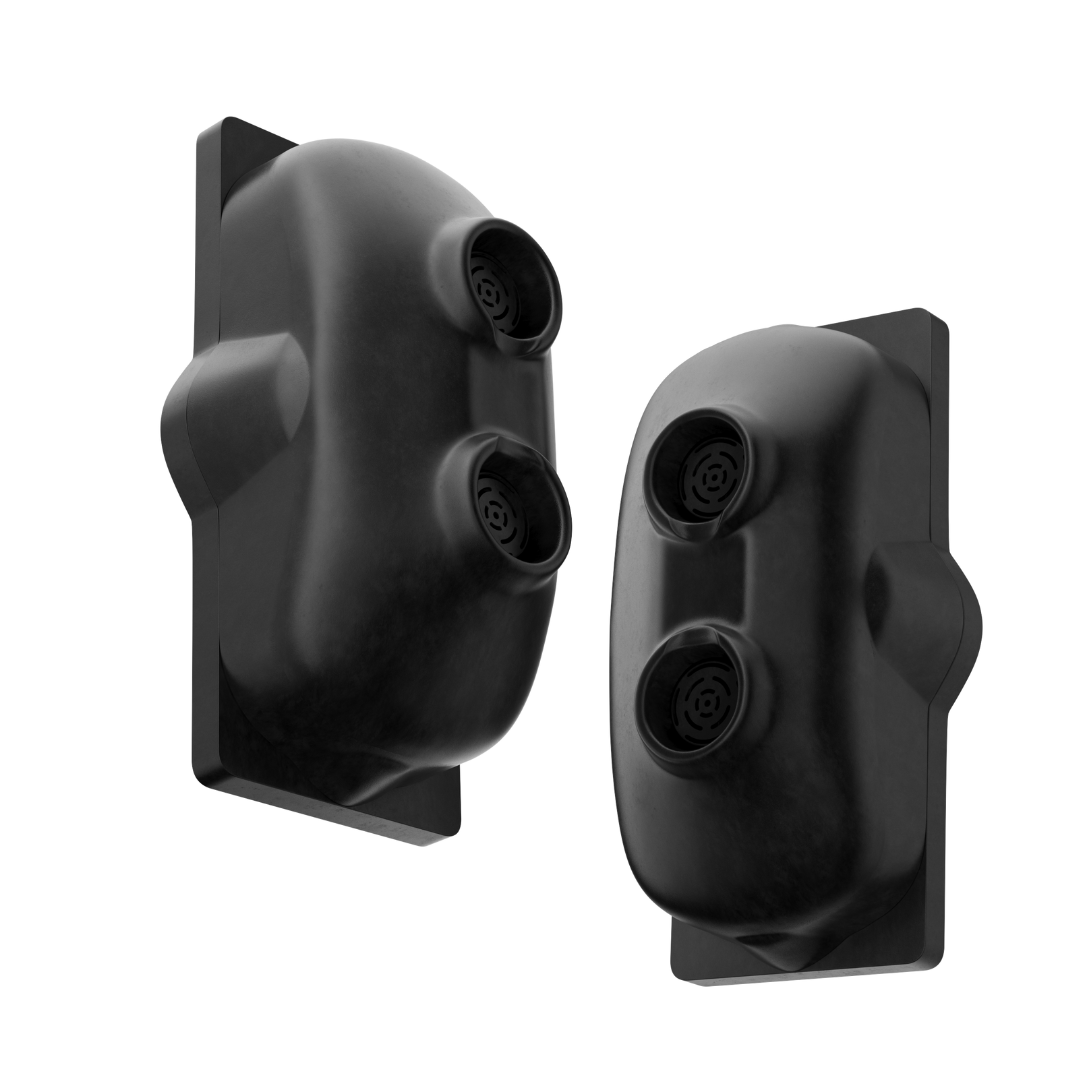

3/4 profile view of black ultrasonic bin sensors
Step 2

Receive the delivery from Sensoneo

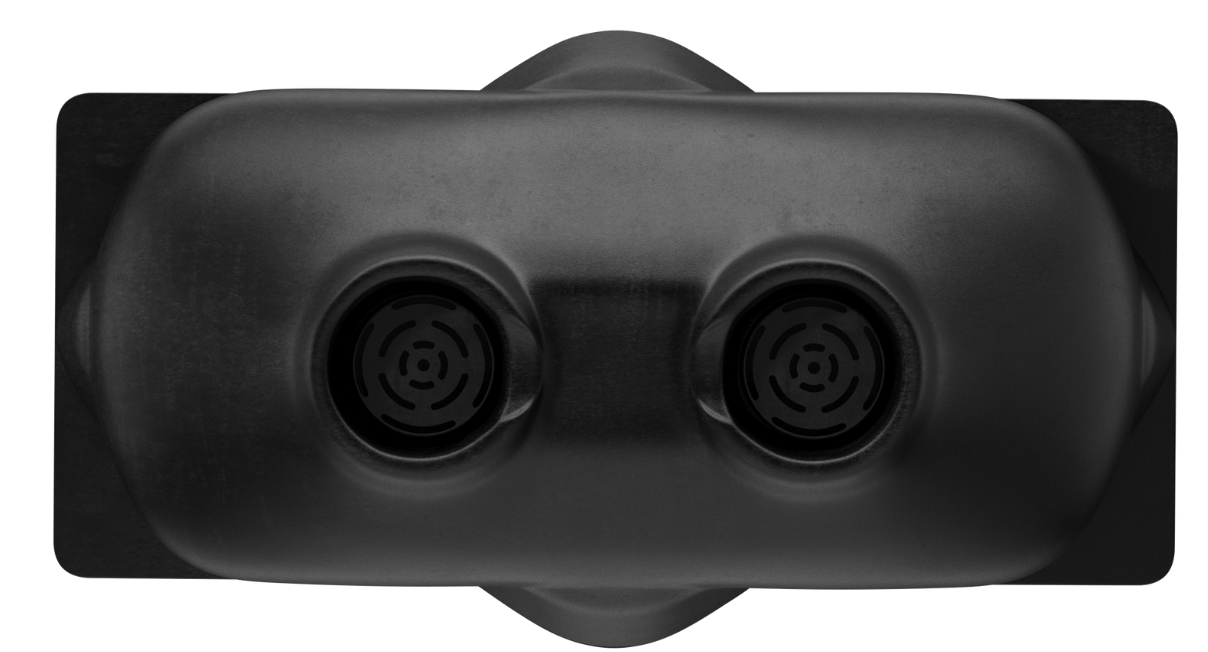

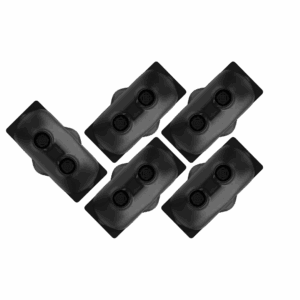

Black ultrasonic bin sensors with dual circular components, top view.
Step 3

Activate and configure devices

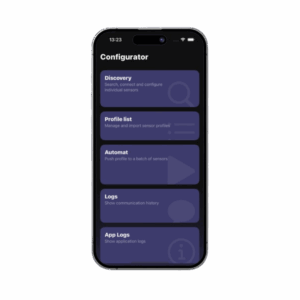

A mobile app interface for configuring and managing sensor profiles.
Step 4

Physical installation of sensors

Compact black dual-sensor fill-level monitoring device.
Step 5

Start monitoring in the platform

Laptop screen showing a waste-management dashboard with map pins and bin fill levels.

Competitive advantage

  • Dynamic waste collection, no unnecessary routing
  • Collection of only full bins and containers, saving resources on bins in remote locations
  • Clean streets, no overflowing bins and mess
  • Best possible service for the money invested in the waste collection
  • Real overview on waste production thanks to comprehensive data
  • Rightsizing of frequencies, capacities or locations
  • Supervision over the efficiency of the collection
  • Reducing CO2 emissions, relieving traffic congestion and engaging citizens

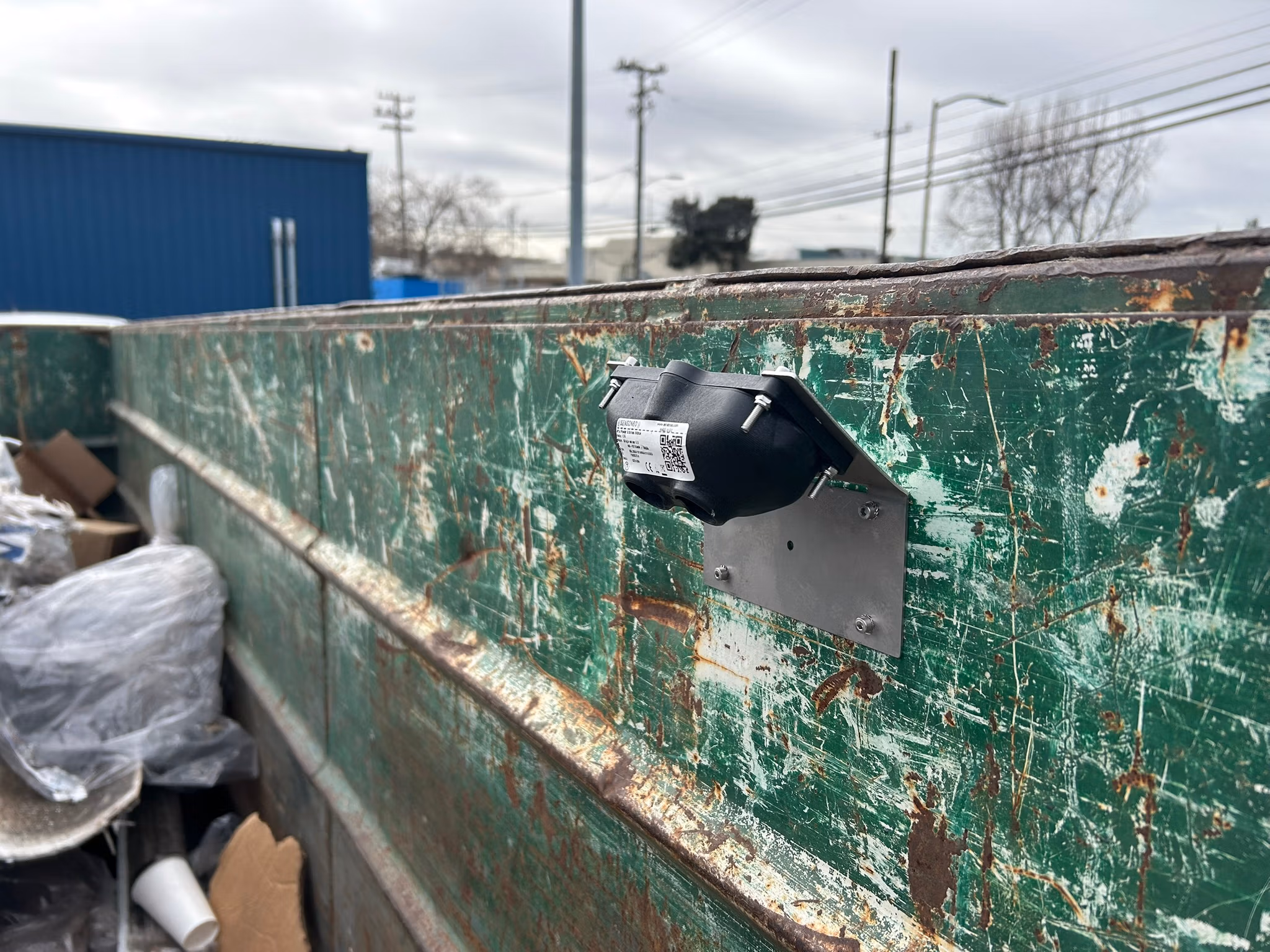

A green dumpster with a sensor mounted on the side used for monitoring or tracking waste levels.

Related solutions

We recommend exploring the following resources.

Laptop screen showing a waste-management dashboard with map pins and bin fill levels.

Waste Management System (WMS)

The powerful cloud-based platform helps customers configure, monitor, and plan everyday waste management activities. It is one of the best waste management software solutions on the market today.
A mobile app interface for configuring and managing sensor profiles.

Configurator App

Sensoneo’s Configurator App helps initialize sensors during installation and set various parameters such as measurement intervals and network type.

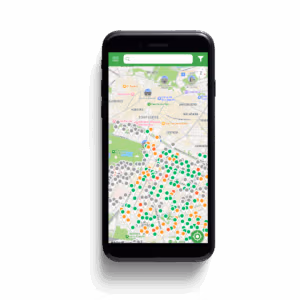

Mobile app showing a live map of bin locations and fill levels.

Waste Monitoring App

Waste Monitoring App is a mobile application that allows citizens to view and use data from Sensoneo Smart Sensors measuring fill levels in bins.

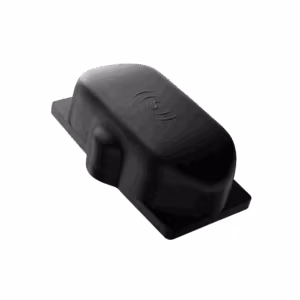

Black compact sensor device with a smooth, rounded housing and mounting base.

Radar Sensor

An advanced device for monitoring liquid fill levels in challenging environments, such as oil and underground water, including corrosive substances like kerosene.
